BagFilter Pull-Up

Lateral filter bag

For PCR and small volumes

Ref 111 625 (400 mL)

BagFilter Pull-Up

Lateral filter bag

For PCR and small volumes

Ref 111 625 (400 mL)

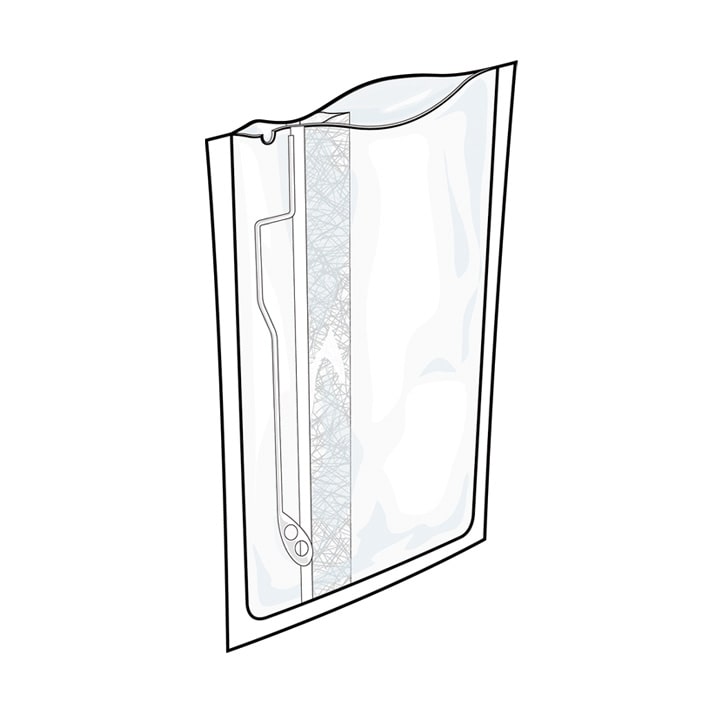

BagFilter Pull-Up is a bag with a non-woven side filter. It has been specially designed to make pipetting easy with any type of pipette and short tips (Patented).

For PCR and small volumes : < 1000 µL
Filter porosity < 50 micrometers
Compatible with any laboratory blender
Multilayer : reinforced multicoated complex

Demande de prix

Présentation

One bag for the full analysis

With BagFilter, use the same bag to sample, blend, filter and pipet. This will prevent cross-contamination and save time.

1. Place the sample

2. Dilute the sample

3. Blend the sample

4. Pipet the filtrate

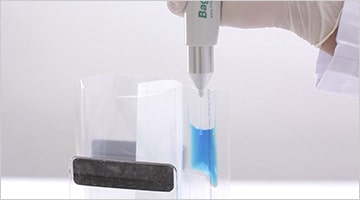

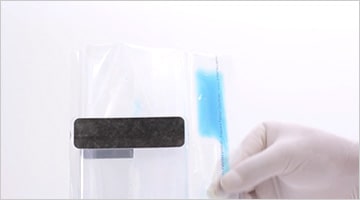

Pull-Up system : easy pipetting for short tips

With a unique filter design, the Pull-Up system is ideal for PCR analysis and small volumes (<1000 µL).
It facilitates pipetting with pipettes / short tips (≥ 4 cm) and avoids cross-contamination. PATENTED

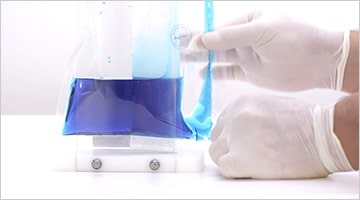

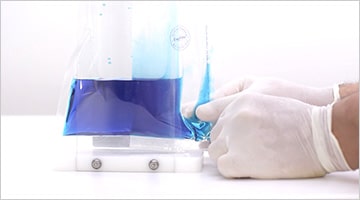

Instant filtration

Filtration is done during blending. There is no need to wait for sedimentation of the debris to pipet.

The filtrate is particle-free, so there is no debris on the Petri dish. Reading is thus facilitated and the results more precise.

Why use a filter bag ?

No blocked pipet from particles

Debris free

No cross-contaminations

There is no contact between the sample and the mixer during homogenization. This avoids cross-contamination.

The bag can be closed with a BagClip or welded. It is processed by gamma ray.

Before

After

Applications

BagFilter Pull-Up is used according to the protocols in food, pharmaceutical, cosmetic, environmental and public research institutes. It is suitable for flow cytometry and PCR protocols thanks to its pipetting area adapted to micropipettes.

Vidéos

BagFilter - Lateral filter blender bags: Overview of the range - Lateral filter blender bags: Overview of the range

Download the video

BagSystem - Increase your sample preparation - Increase your sample preparation

Download the video

From sample preparation to bacterial analyses — Overview (vost EN) - Overview

Download the video

From sampling to bacterial counting - Overview

Download the video

Ressources

Products

Title

Language

Type

Size

Download



PDF

19.7 MiB

Language: English

Blender bags catalog



PDF

333 KiB

Language: English

BagFilter Pull-Up technical file



PDF

557.3 KiB

Language: English, french

ISO 9001 Certificate



PDF

46.9 MiB

Language: English

English catalog

Zip

1 MiB

Bag Range picture

Zip

630.5 KiB

BagFilter range picture

Zip

715.6 KiB

BagFilter Pull-Up picture

Zip

1 MiB

BagFilter Pull-Up for PCR picture

Title

Language

Type

Size

Download

Title

Language

Type

Size

Download

Title

Language

Type

Size

Download

Title

Language

Type

Size

Download

Title

Language

Type

Size

Download

Title

Language

Type

Size

Download

Spécifications

BagFilter Pull-Up 400

Référence	111 625
Sacs avec filtre
Dimensions sac	190 x 300 mm
Volume max pour le malaxage	400 mL
Volume optimal pour le malaxage	50-300 mL
Type de sac	Bag with lateral filter
Pochette de	25
Idéal	PCR and small volumes (≤ 1000 µL)
Carton de	500
Composition du sac	Multilayer: reinforced multicoated complex
Emballage (l x p x h)	34 x 22 x 26 cm
Poids brut	5.60 kg
Type de filtre	Non-woven
Porosité du filtre	< 50 µm
Traitement par rayons Gamma	5 to 13 KGy, with certificate
Durée de conservation	10 years
Résistance aux température	-40 °C to 80 °C (-40 °F to 176 °F)
Conditions de stockage	In a temperate and dry place, away from humidity and light
En conformité avec	ISO 7218, ISO 6887 and FDA BAM (Bacteriological Analytical Manual)
Approuvé contact alimentaire	Regulation (EC) N° 1935/2004
